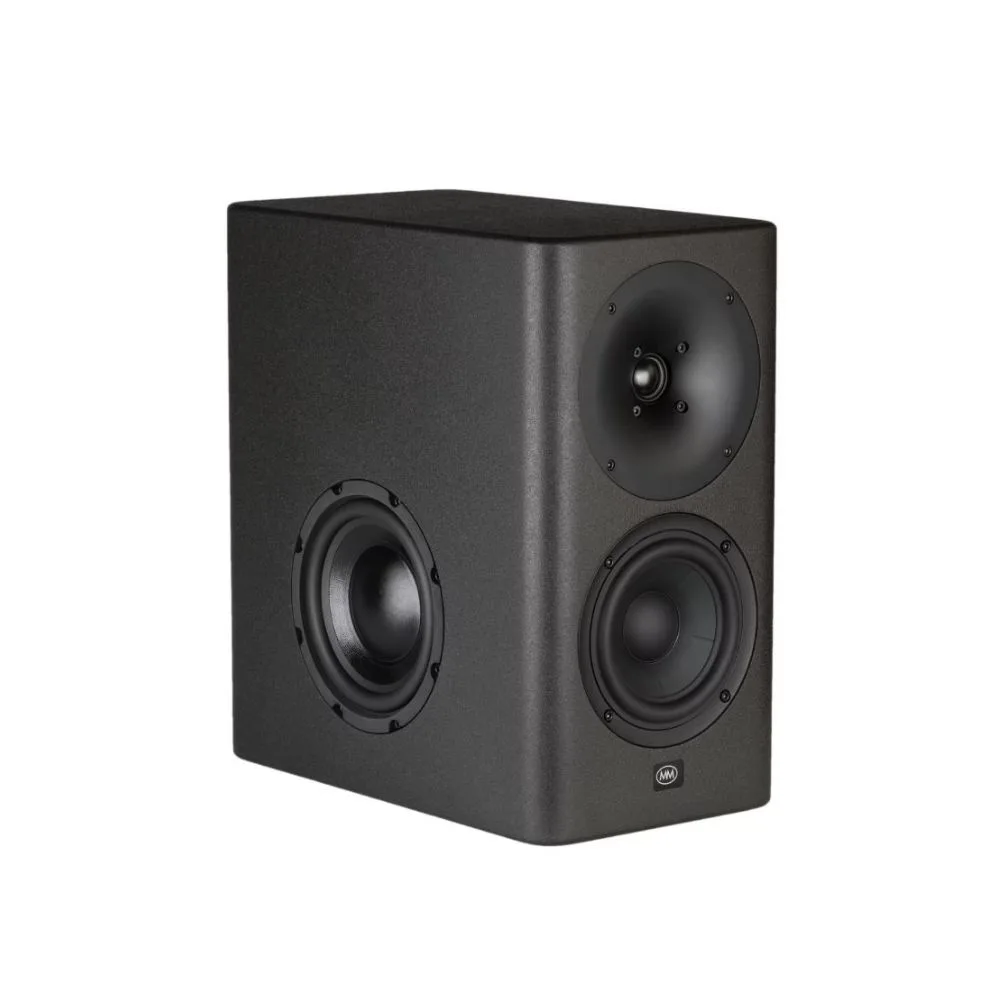

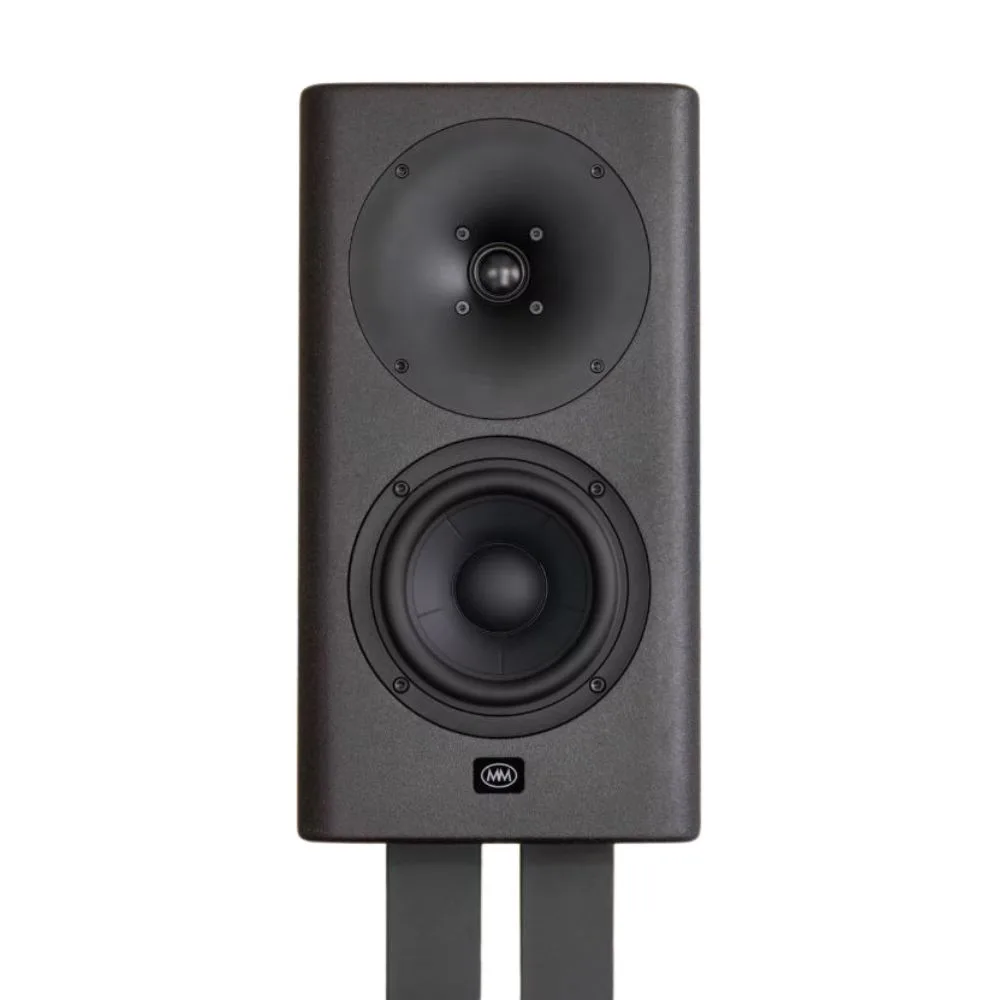

CDM65
Studio Monitor
The CDM65 is a three-way active DSP monitor engineered for uncompromised accuracy, controlled directivity, and modern connectivity. Featuring a proprietary cardioid mode that controls dispersion down to 150 Hz, it minimizes room interaction and delivers consistent, reliable monitoring even in untreated spaces. Precision-tuned using advanced measurement systems, the CDM65 achieves exceptional tonal balance, low distortion, and near-perfect in-room response. With support for both analog inputs and lossless WiSA wireless audio, it transitions seamlessly between professional studio monitoring and high-end home listening, delivering reference-grade performance in a compact, all-in-one design.
Controlled Directivity Design
The CDM65 ships in a proprietary cardioid mode that controls dispersion down to approximately 150 Hz. By directing energy toward the listener and reducing reflections from side and rear walls, it minimizes room coloration and improves clarity in real-world environments.
Precision Accuracy
Designed using advanced tools including an anechoic chamber, Klippel Near Field Scanner, and CEA-2034 “Spinorama” standards, the CDM65 delivers a true ±1 dB on-axis and listening-window response with exceptionally low distortion.
Wireless Audio Integration
As a WiSA-certified speaker, the CDM65 supports uncompressed 24-bit 48/96 kHz wireless audio from compatible transmitters or the optional Platin Stereo Hub, enabling flexible, low-latency multi-speaker configurations.
Compact All-In-One System
Combining controlled directivity, extended low-frequency response down to 36 Hz, DSP processing, analog input, and wireless connectivity, the CDM65 delivers reference-grade performance in a compact enclosure suitable for studios and high-end listening spaces.

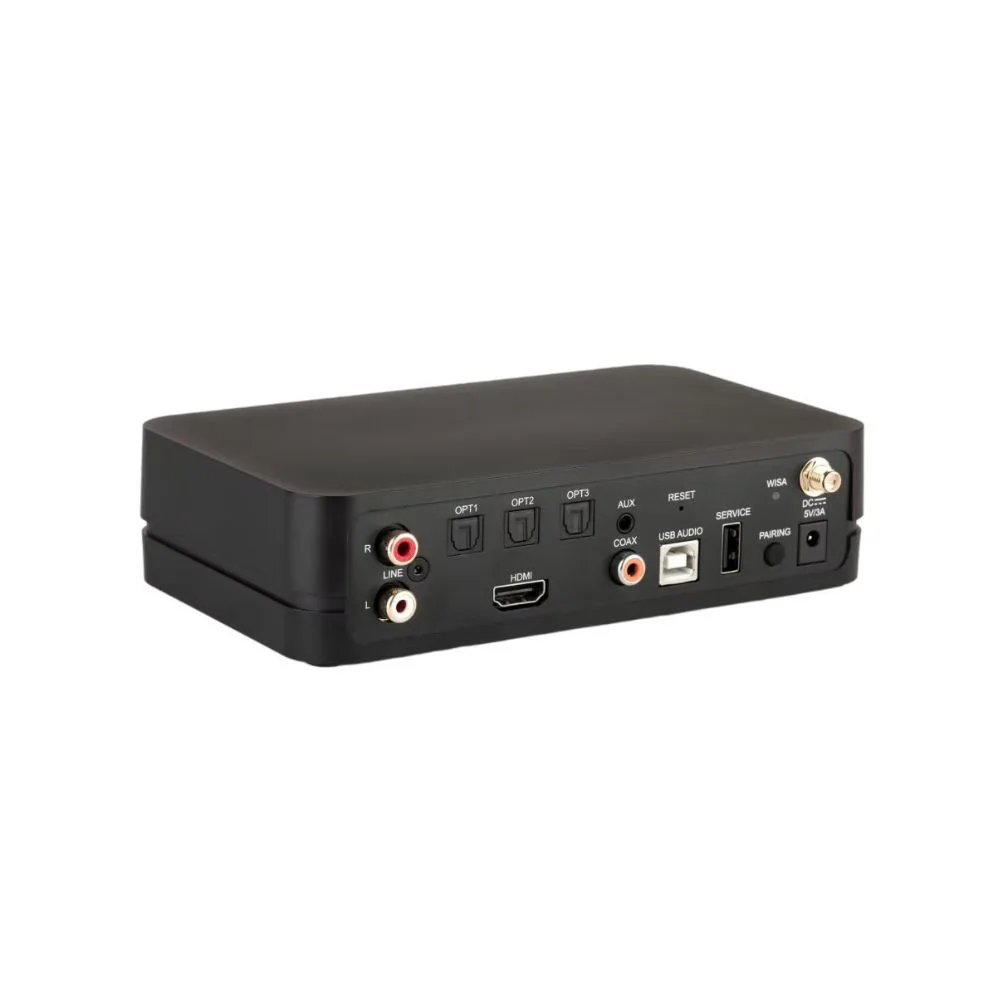

Optional Stereo Hub
The optional Stereo Hub adds extensive connectivity, streaming services, remote control, and built-in DSP with room correction and manual EQ, all managed through a dedicated control app.
FEATURES
- Three-way active DSP monitor with cardioid directivity control
- Proprietary cardioid mode controlling dispersion down to 150 Hz
- ±1 dB on-axis and listening-window frequency response
- Low distortion, high-precision acoustic design
- WiSA-certified wireless audio (24-bit / 48–96 kHz, lossless)
- Analog input for direct studio integration
- Extended low-frequency response down to 36 Hz
- Optional Platin Stereo Hub with streaming, DSP, and room correction
- Compact cabinet optimized for studios and home listening
Specifications
| Drivers |
High: 1″ aluminum dome waveguide tweeter Mid: 5″ aluminum cone woofer Low: 2 × 6.5″ paper kevlar subwoofers |
| Amplification |
Class D High: 150 W Mid: 150 W Low: 300 W |
| Cabinet Dimensions (H × W × D) | 15 × 8 × 14 in |
| Weight | 32 lbs |
| Frequency Response |
40 Hz – 20 kHz ±1.0 dB –3 dB @ 36 Hz |
| Harmonic Distortion |
Measured at 96 dB SPL @ 1 m >85 Hz ≤ 1.0% |
| Maximum SPL |
103 dB from 40 Hz per speaker before limiting (Tested @ 1 m with continuous full-bandwidth pink noise) |
| Crossover Frequencies | 150 Hz & 2300 Hz |

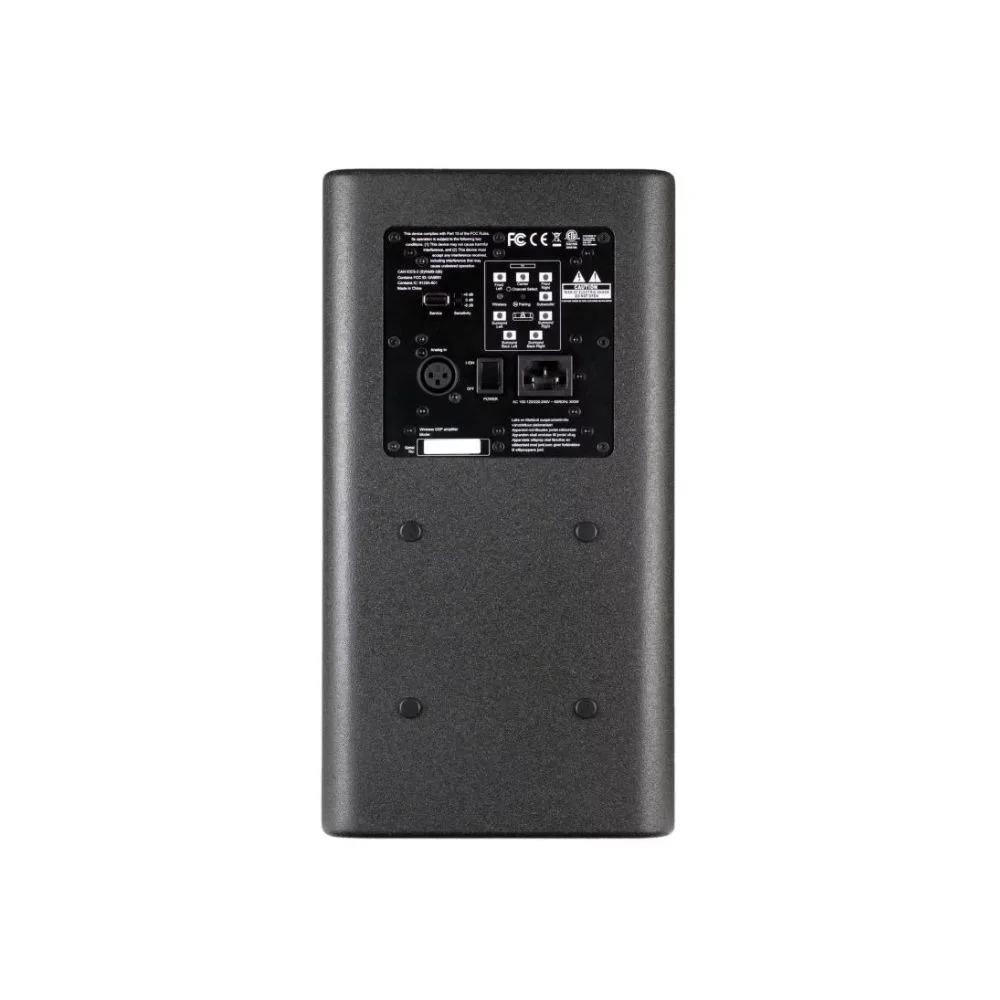

| Connections | Balanced XLR input, WiSA wireless |
| AC Power | Auto switching 115 / 230 V |
| Standby Mode | Automatic standby after 20 minutes without audio signal |
