LooptrotterSAT 500
Single Channel 500 Series
Looptrotter SAT 500 is a single-channel 500-series saturation module built around Looptrotter’s renowned harmonic circuit. Designed to add low-order harmonics while gently controlling dynamics, it increases perceived loudness and density in a smooth, ear-friendly way. Drive sets saturation depth, while true bypass and harmonic LED indicators ensure precise control. Hi Smooth enhances high-frequency saturation without harshness, and Lo Safe preserves low-end clarity on bass-heavy material. With independent dry and wet controls, SAT 500 moves effortlessly from subtle analog color to bold, aggressive saturation for tracking, mixing, or parallel processing.
Musical Analog Saturation
Looptrotter SAT 500 brings the brand’s renowned saturation circuit into a single-channel 500-series module, delivering harmonics that feel musical, controlled, and unmistakably analog. It adds low-order harmonics while gently evening out dynamics, increasing perceived loudness and density without harshness or fatigue.
Intuitive Control & Monitoring
The Drive control sets both input level and saturation depth, while True Bypass allows instant comparison between dry and processed signals. Dual LEDs indicate 4% and 8% THD, making harmonic content and gain staging easy to monitor and repeat.
Advanced Tone Shaping
Hi Smooth boosts high frequencies before saturation and attenuates them after, enabling richer harmonic detail with a naturally smoothed response. Lo Safe protects low frequencies via pre-emphasis and de-emphasis, keeping bass-heavy material tight and distortion-free.
Flexible Parallel Processing
With independent Dry and Wet controls, SAT 500 moves seamlessly from subtle analog coloration to aggressive parallel saturation on individual tracks, buses, or full mixes.
FEATURES

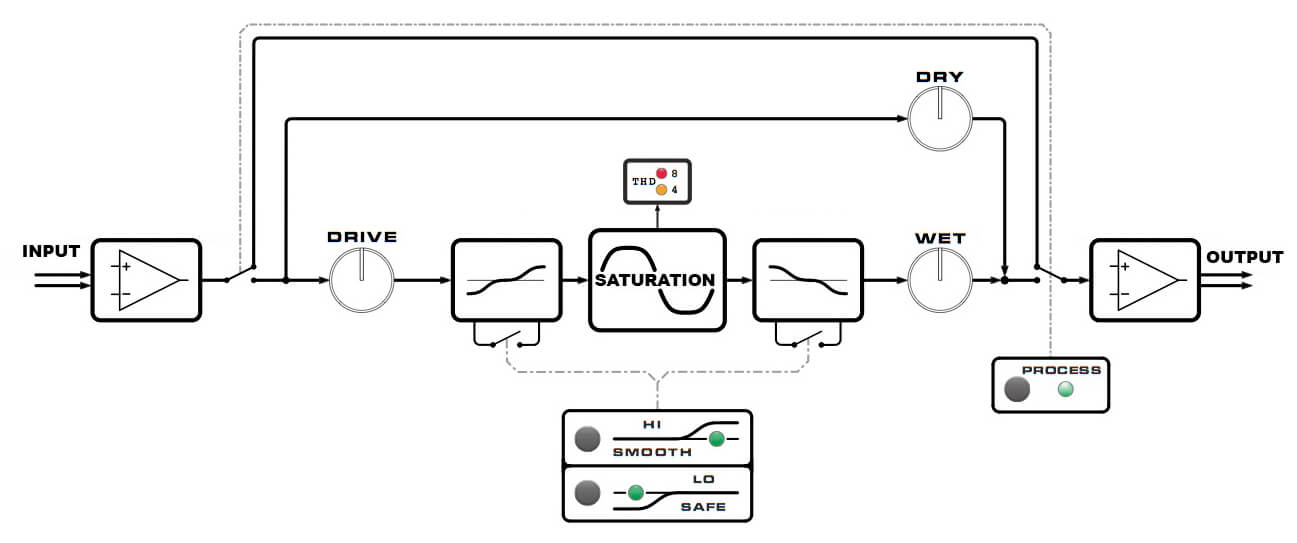

- Drive controls the input level of the processed signal and the depth of saturation.
- Process (True Bypass) switches instantly between dry and saturated signals. Added harmonics are indicated by two LEDs lighting at 4% and 8% THD.
- Hi Smooth boosts high frequencies before the saturation circuit and attenuates them after, allowing richer harmonic detail in the highs with a naturally smoothed, compression-like response.

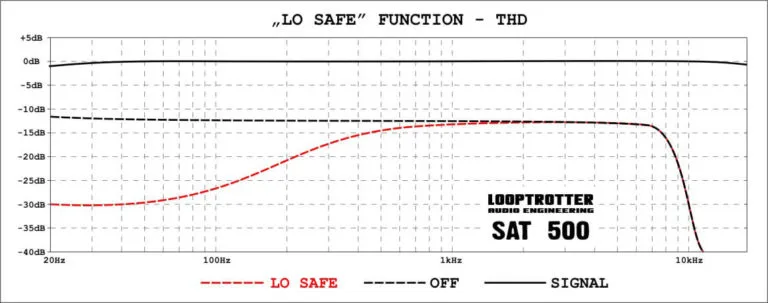

- Lo Safe engages a pre-emphasis and de-emphasis circuit to protect low frequencies from distortion, ideal for bass, kick drums, drum buses, and full mixes.
- Independent Dry / Wet Controls allow precise blending between processed and unprocessed signal, from subtle coloration to aggressive saturation.
