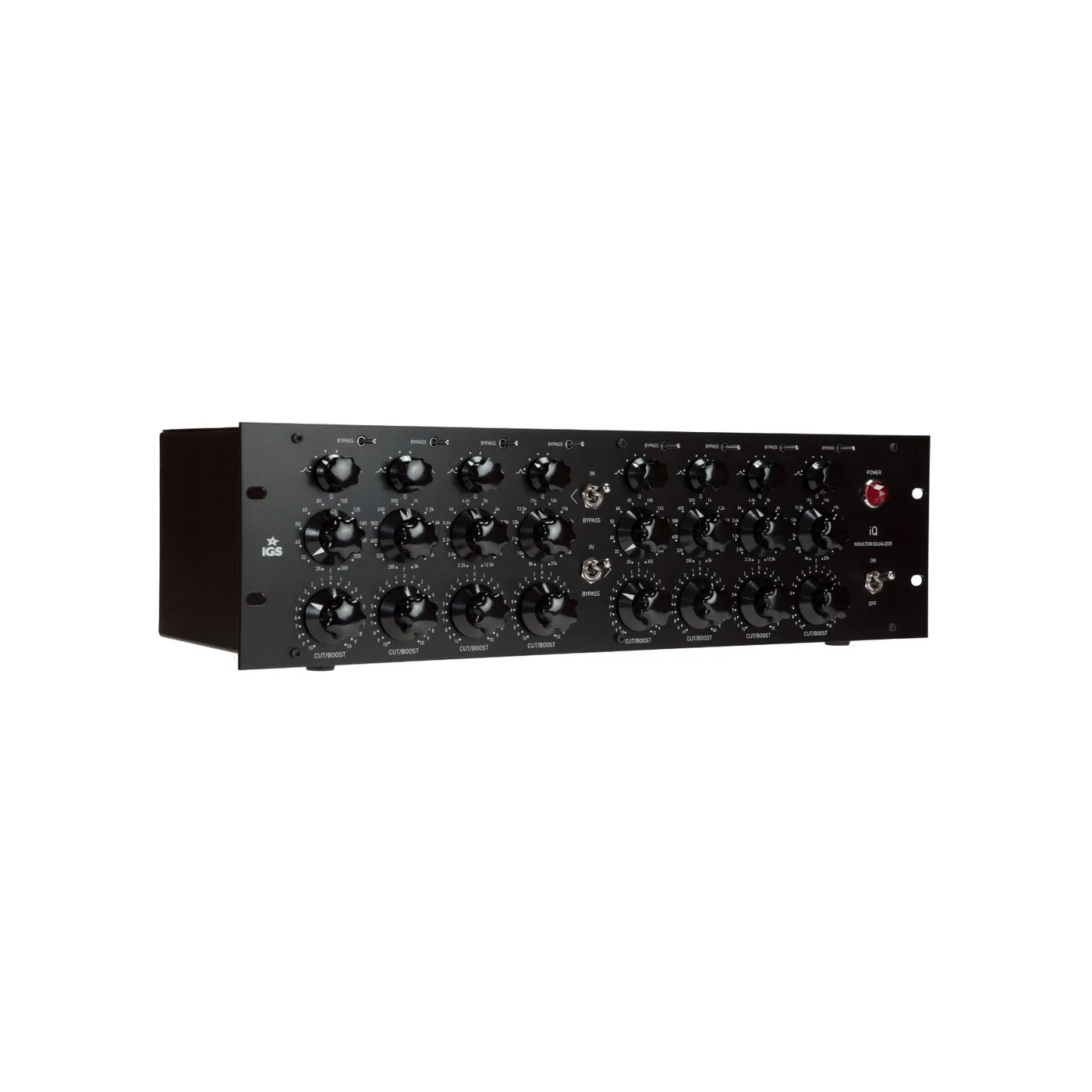

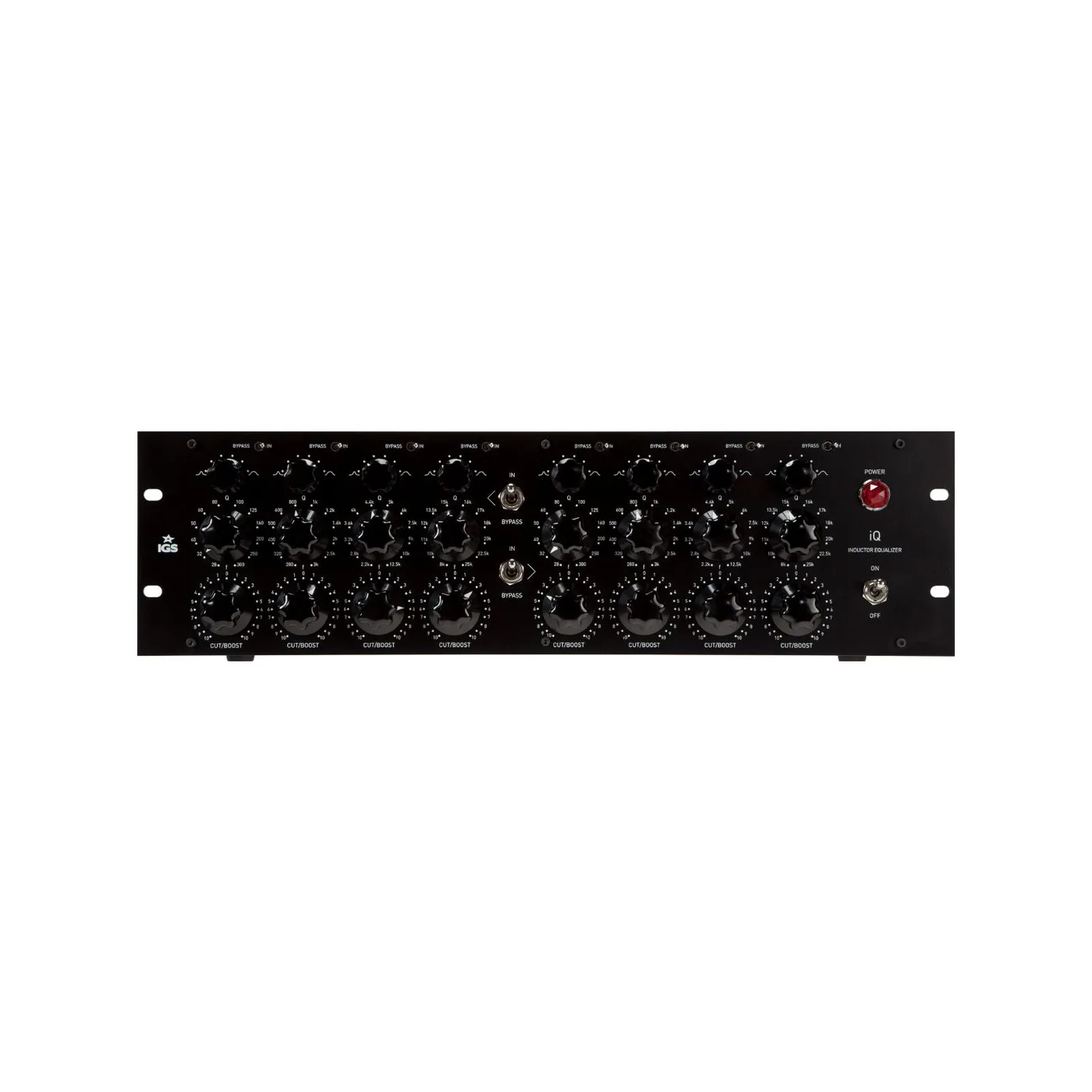

iQ Inductor Equalizer
Dual Mono Parametric EQ
The iQ Inductor Equalizer is a mastering-grade parametric EQ that combines the musicality of classic analog filters with the precision modern engineers demand. Built entirely around stepped controls, it allows subtle, repeatable adjustments while preserving the integrity of the original signal. Using inductors to shape tone, the iQ delivers gentle saturation and depth that digital equalizers cannot replicate. Its ability to simultaneously boost and cut similar frequencies enables refined tonal balancing through micro-manipulation. With four carefully voiced bands—Sub, Bass, Mid, and High—the iQ excels at transparent correction, musical enhancement, and detailed sound sculpting at any stage of production.
Modern Precision with Analog Soul
The iQ Inductor Equalizer applies classic inductor-based filtering to a fully stepped, parametric design. This approach preserves clarity and neutrality while introducing the subtle harmonic complexity that defines high-quality analog processing.
Musical Micro-Manipulation
Rather than broad, heavy corrections, the iQ focuses on fine tonal shaping. Simultaneous boosting and cutting of related frequencies allows engineers to rebalance energy without altering the natural character of the source.
Four Fully Controllable Frequency Bands
The frequency spectrum is divided into Sub, Bass, Mid, and High bands. Each band offers control over frequency, boost/cut, bandwidth, and bypass, providing exceptional flexibility for mastering, mix-bus, and precision tracking applications.

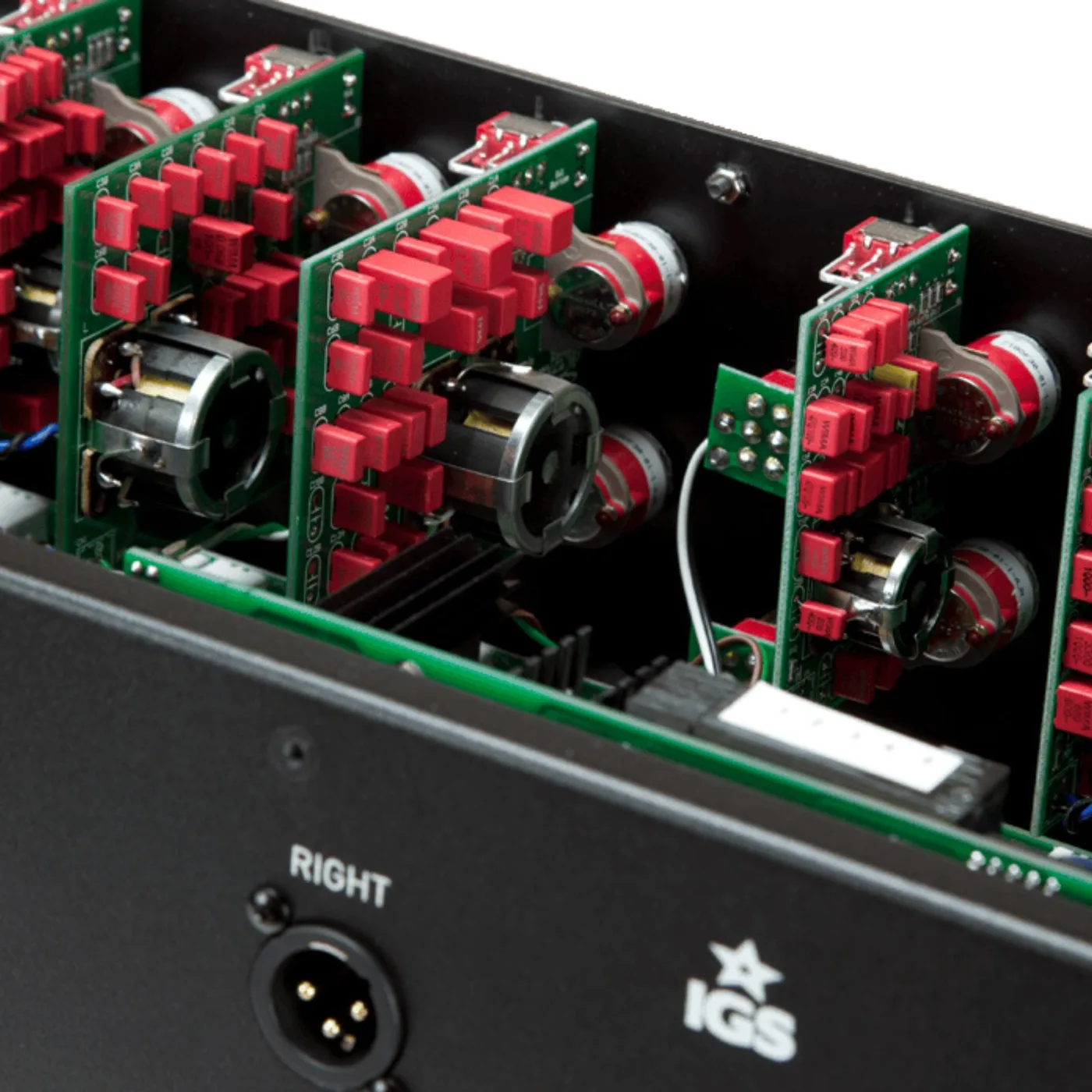

Inductor-Driven Harmonic Depth
Inductors introduce gentle saturation and dimensionality, similar to transformer behavior. This results in a sound that feels fuller and more engaging, while remaining accurate and controlled.
Designed for Professional Stereo Workflows
With two channels and fully stepped controls throughout, the iQ is engineered for recall-friendly mastering environments where consistency, precision, and musicality are equally essential.
Videos
Specifications
| Boost / Cut Range | ±10 dB |
| Hard Wire Bypass | Yes |
| Q Factor | 0.3 – 6 |
| Audio Transformers | IGS Custom transformers (input and output) |
| Input Impedance Balanced |
10 kΩ |
| Output Impedance Balanced |
600 Ω |
| Operating Level | +4 dBu |
| Maximum Input Level | +22 dBu |
| Maximum Output Level | +26 dBu |
| Frequency Response | 20 Hz – 20 kHz ±0.1 dB |
| Crosstalk | 102 dB |
| Voltage | 115 / 230 V AC, 50–60 Hz |
| Power Consumption | 25 W |
| Power Supply | Internal |
| Dimensions | 70 × 40 × 30 cm |
| Shipping Weight | 4 kg |
