DA6

6 × Stereo or 12 × Mono Distribution

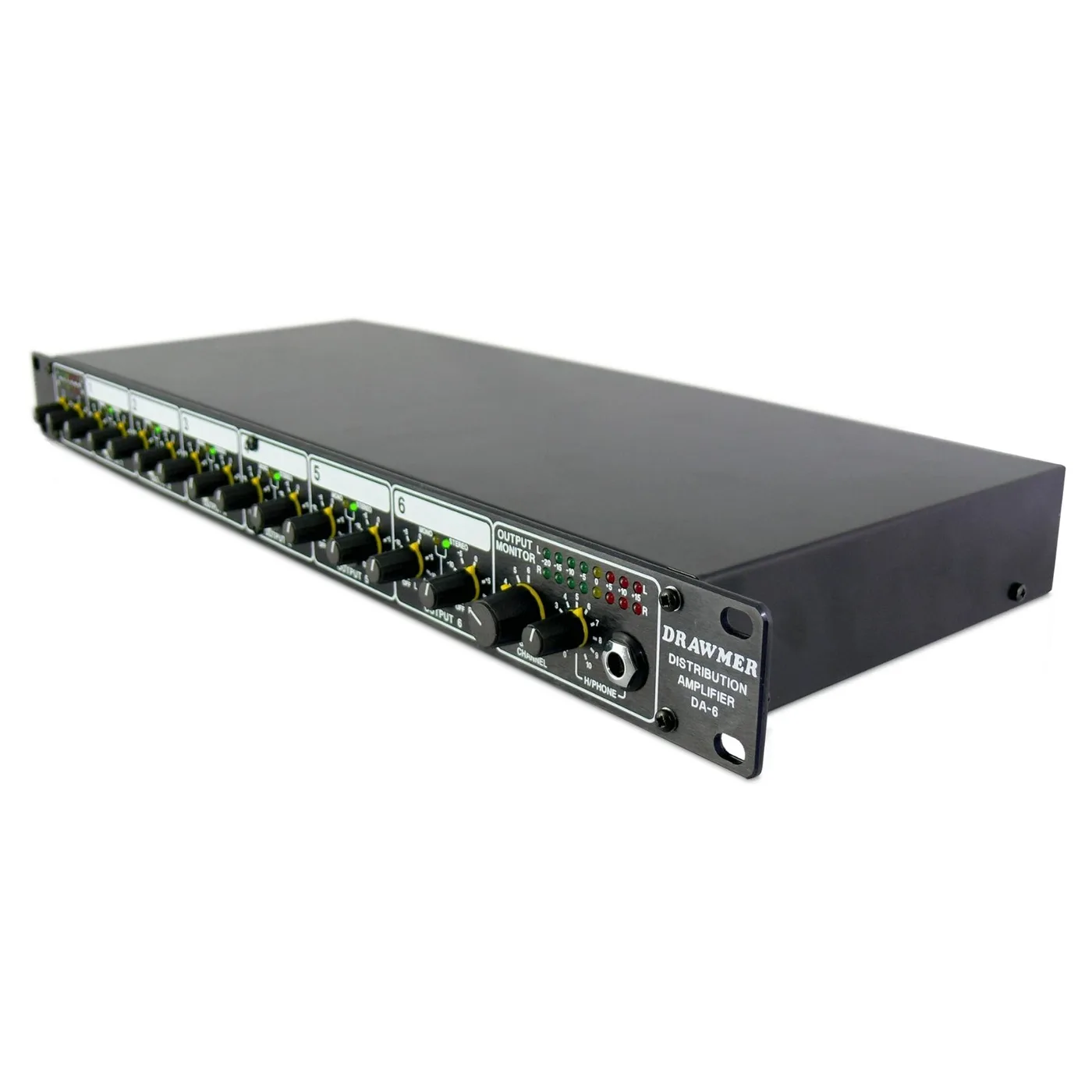

The Drawmer DA6 is a flexible six-channel stereo, or twelve-channel mono, distribution amplifier designed for clean, reliable signal delivery across complex audio systems. Ideal for multi-zone sound reinforcement, broadcast studios, live sports coverage, video suites, duplication, and other professional environments, the DA6 ensures consistent, high-quality audio over long cable runs.

Engineered for transparency and stability, it provides dependable signal distribution wherever multiple destinations must be driven without compromise.

Easy and Reliable Operation
The DA6 features fully balanced XLR inputs and outputs, with optional transformer balancing for installations where remote amplifiers and recorders are powered from separate mains supplies. Each stereo input channel includes independent left and right level controls, supported by LED bargraph metering for accurate gain matching of stereo or dual-mono sources.

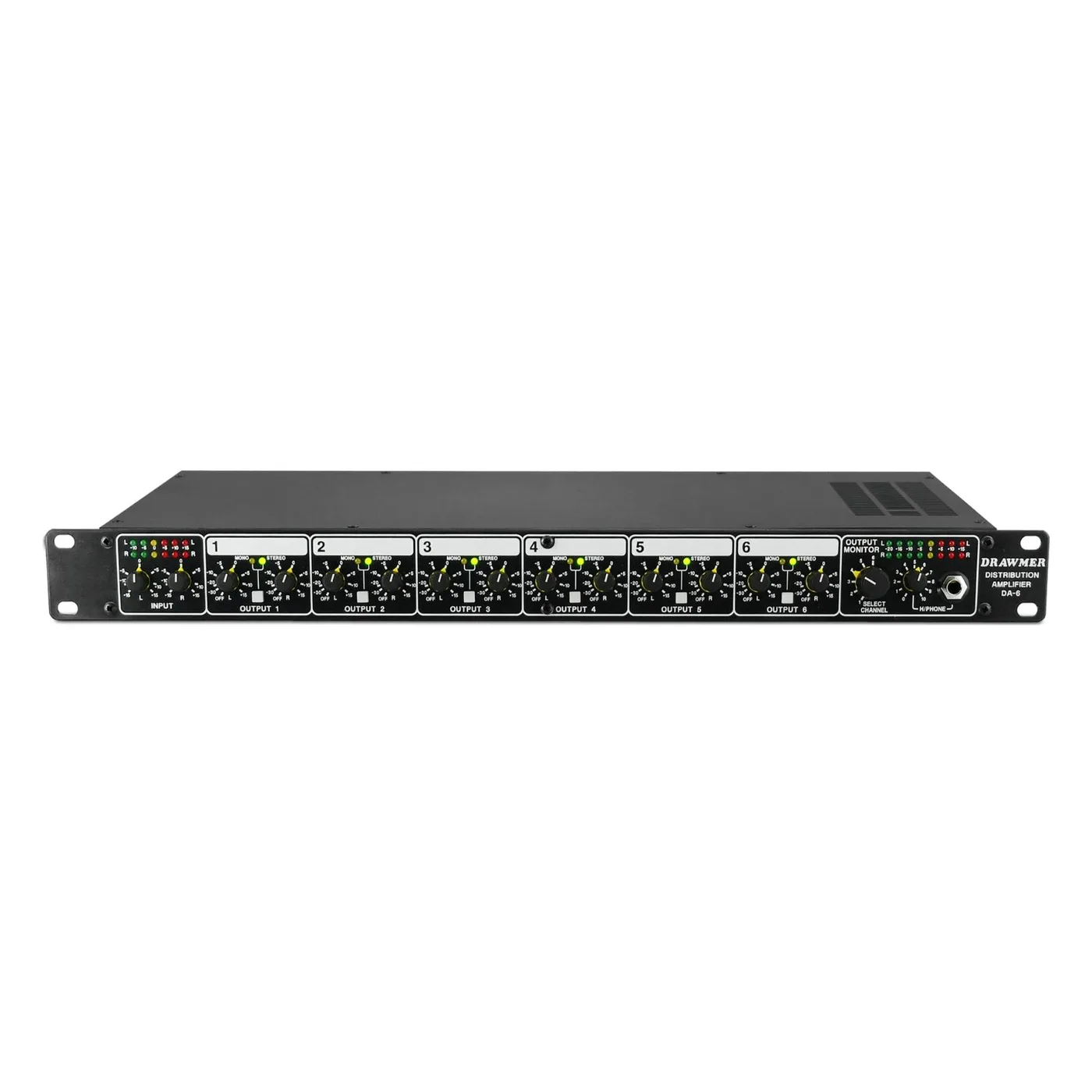

All six output channels are equipped with individual left and right level controls, along with a Mono/Stereo switch. This allows the DA6 to be configured as one stereo input feeding six stereo outputs, one mono input feeding twelve mono outputs, or any practical combination of both.

Flexible Monitoring and Expansion
The output section includes a channel select control, enabling the left and right output levels of any channel to be displayed on the output LED bargraph and monitored via the built-in headphone output. This provides fast, confident monitoring without interrupting signal flow.

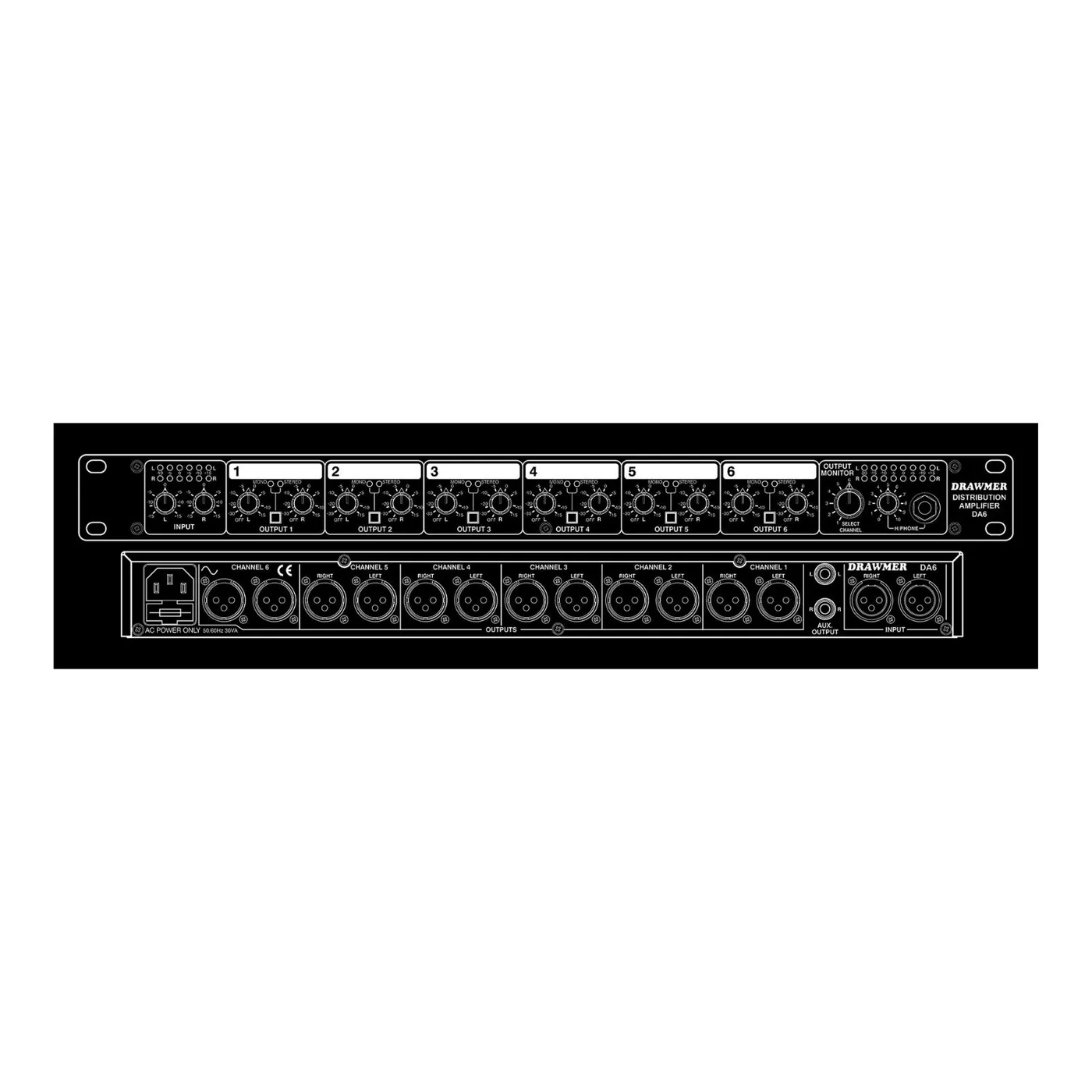

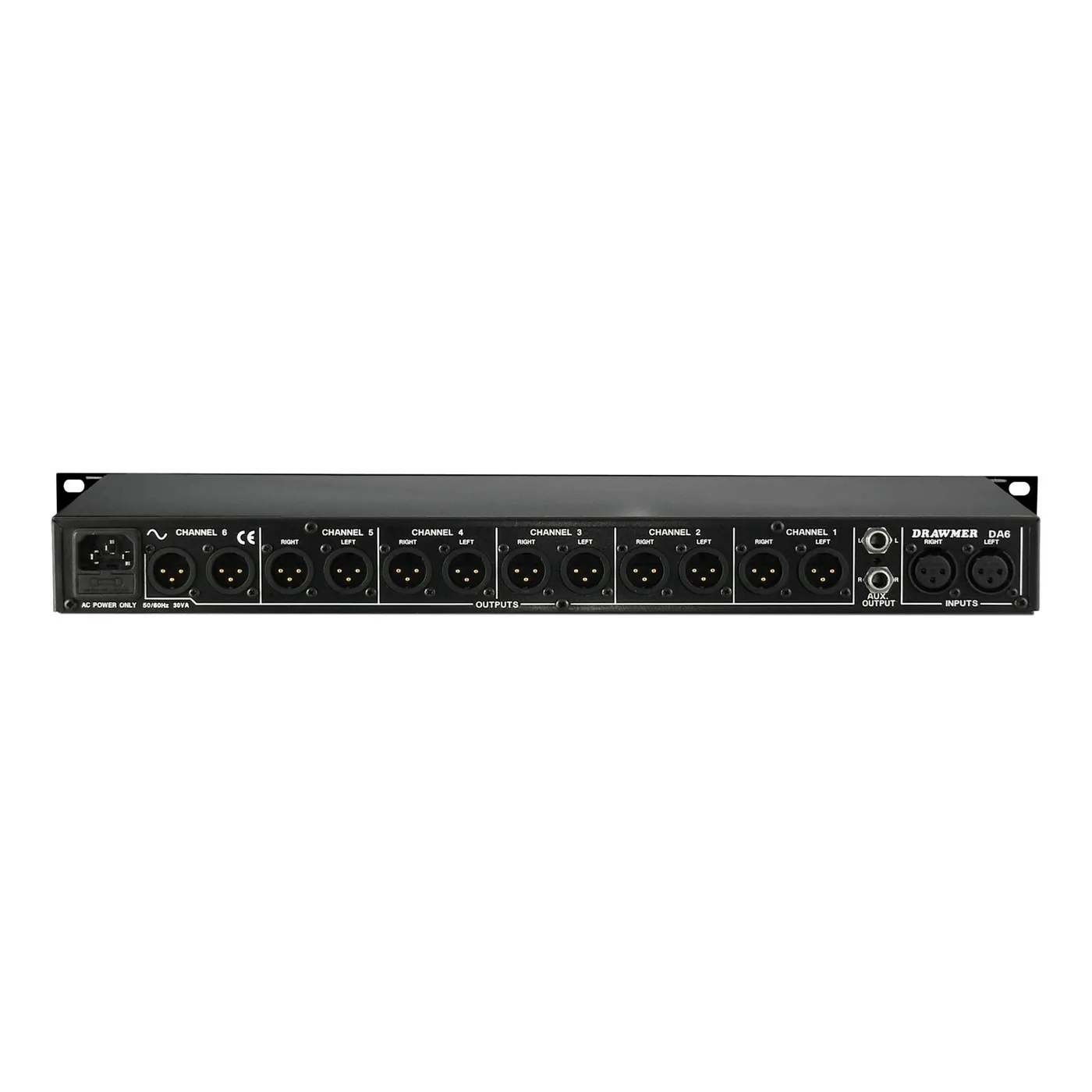

For larger systems, rear-panel TRS link sockets allow multiple DA6 units to be chained together, expanding distribution capacity while maintaining consistent performance throughout the signal chain.
