CMC7
Surround Monitor Controller
The CMC7 is a precision 8-channel surround volume controller designed for studios that need accurate, transparent monitoring without unnecessary complexity. Compact yet powerful, it supports multiple surround formats, maintains exceptionally consistent channel matching, and offers essential controls for fast, confident decision-making. With active circuitry for absolute neutrality and a rugged steel build, the CMC7 delivers reliable, colour-free monitoring for music, film, broadcast, and post-production environments.
Surround Monitoring, Refined and Compact
The CMC7 is a streamlined 8-channel (7.1 / 5.1) surround volume controller created as a practical, cost-efficient counterpart to the feature-heavy MC7.1. Portable, focused, and purpose-built, it omits functions typically managed within the workstation and concentrates instead on the essentials: clear controls, intuitive workflow, and a pristine, transparent signal path. The result is accurate, uncoloured monitoring across all channels.
As with every Drawmer controller, the CMC7 is engineered for absolute neutrality. Its active circuitry preserves the integrity of the source with precision, avoiding the inconsistencies and signal loss common to passive designs. What you hear is what your mix truly contains.
Flexible Surround Format Support

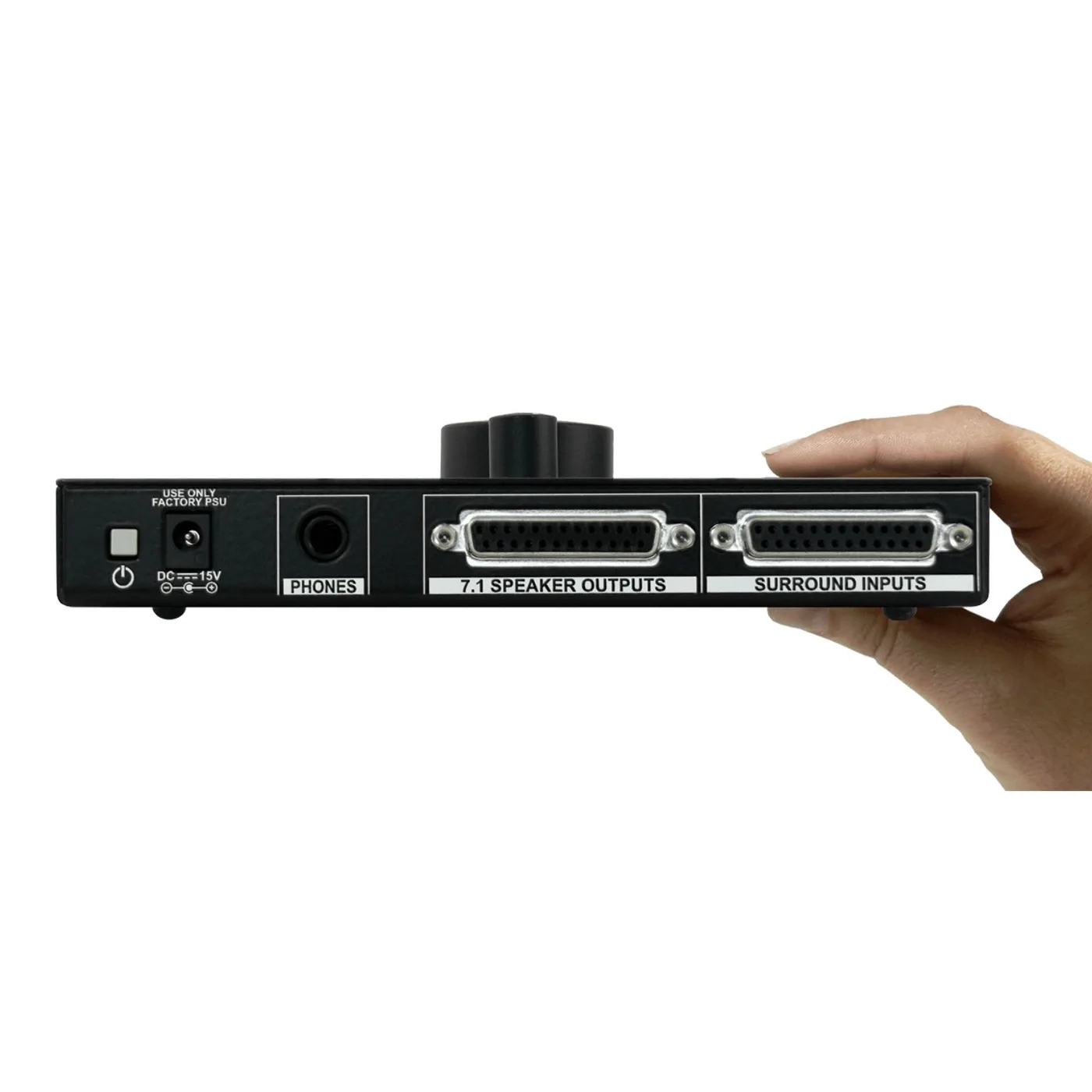

Connectivity is provided through two balanced 25-pin D-sub connectors (Tascam standard), ensuring simple integration into modern studio systems. Handling eight discrete channels, the CMC7 accommodates a wide range of surround formats, including:
• 5.1
• 7.1
• Quadraphonic
• DTS®
• Dolby Digital EX™
• THX Surround EX™
• DTS-HD™
This flexibility makes it suitable for music production, broadcast, film, and post-production workflows.

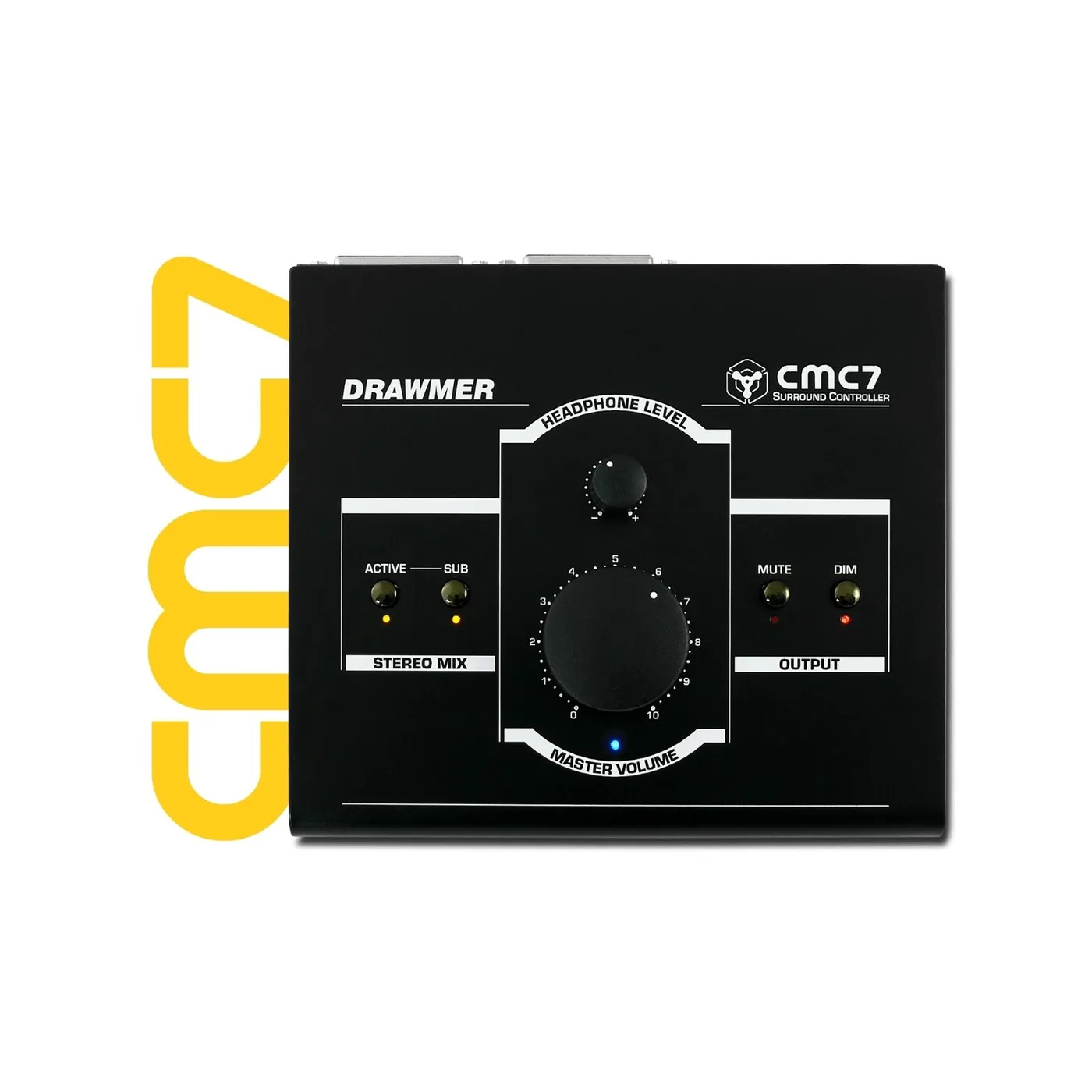

Essential, Streamlined Monitoring Controls
A stereo mix function instantly folds the surround signal down to 2.1 via the front left/right monitors and subwoofer, allowing quick stereo compatibility checks. A high-quality headphone output with dedicated amplification and level control supports accurate private monitoring.
Additional front-panel essentials include:
• Dim switch (-20 dB)
• Mute switch for complete output cut
Everything is positioned for fast, confident adjustment during critical listening.
Precision Channel Matching
Accurate surround work demands consistent level matching. The CMC7 maintains precise balance across all eight channels throughout the full volume range. Where passive systems often suffer from channel inconsistencies due to multi-ganged potentiometers, the CMC7’s active architecture keeps every channel aligned at any listening level.
Compact, Studio-Friendly Footprint
Measuring just 18 × 16 cm, the CMC7’s low-profile steel chassis integrates easily into desktop or mobile setups. It saves space without compromising usability or performance.
Built for Reliability
Smart, rugged, and ready for demanding daily use, the CMC7 is housed in a robust all-steel enclosure. High-grade components ensure long-term durability, while a Kensington security slot adds protection in shared or portable environments.

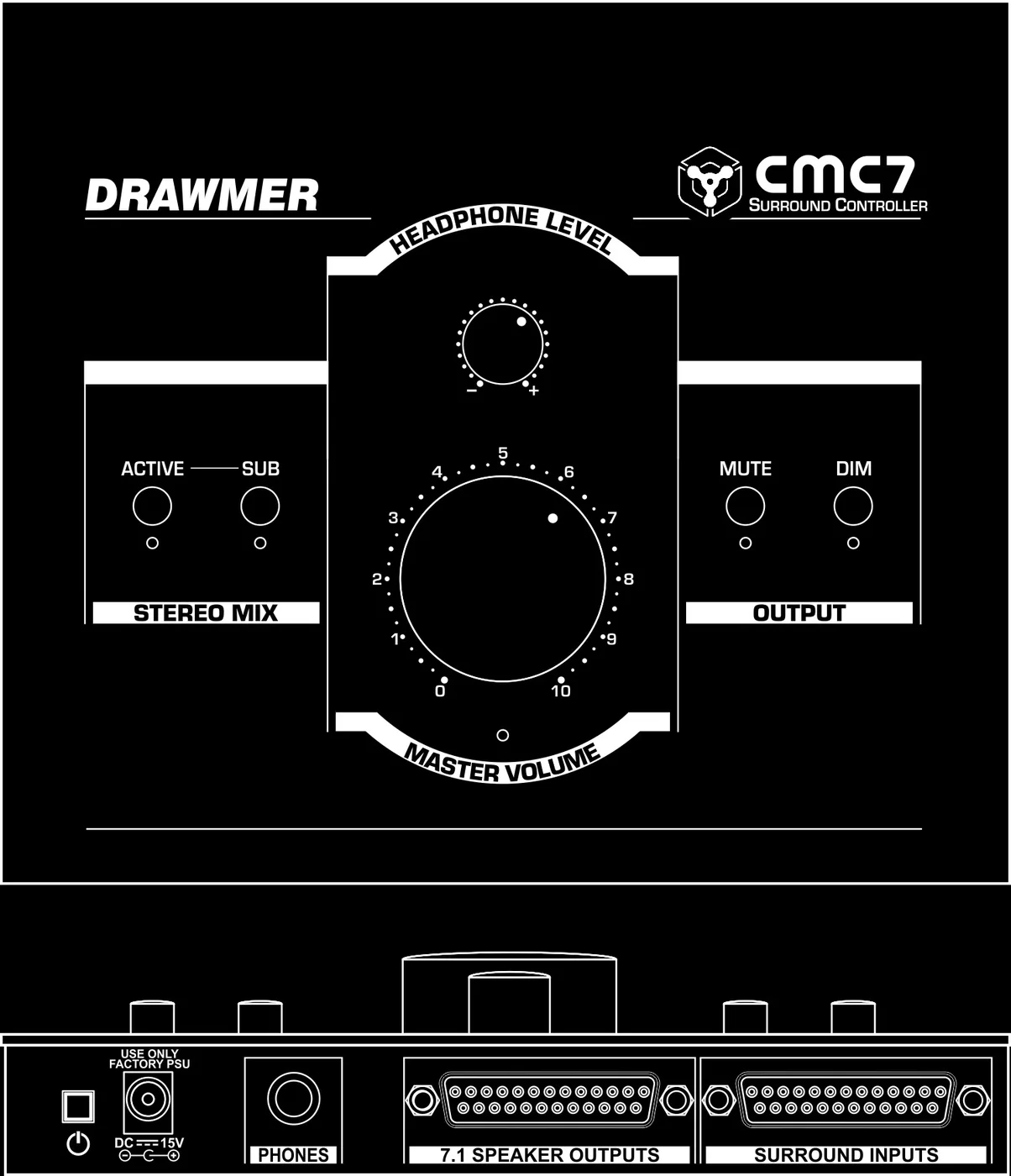

Features
- Ultra-low-noise, transparent circuit design
- Eight-channel input and output via two Tascam-standard 25-pin D-sub connectors for easy integration with audio interfaces and speaker systems
- Supports 5.1, 7.1, quadraphonic, DTS®, Dolby Digital EX™, THX Surround EX™ and DTS-HD™ surround formats
- Stereo mix switch for checking surround mixes in stereo, with independent subwoofer control
- Timed relay protection on all speaker outputs to prevent power-up and power-down thumps
- Large precision volume control for smooth operation and accurate channel matching across all eight channels
- Professional stereo headphone amplifier with dedicated level control (rear-panel jack)
- Rugged all-steel enclosure designed to withstand daily studio use
- Low-profile desktop design with a compact 18 × 16 cm footprint
- Kensington security slot for added theft protection
- Designed and handmade by Drawmer in the United Kingdom
Specifications
| Crosstalk L/R @ 1 kHz |
>80 dB |
| THD & noise Unity gain, 0 dBu input |
0.01% |
| Frequency response 20 Hz – 20 kHz |
±0.2 dB |
| Phase response 20 Hz – 20 kHz |
±2° |
| Power requirements | External power supply Input: 100–240 V ~ 50–60 Hz, 0.48 A max Output: 15 V ⎓ 1 A Voltage automatically selected by PSU EMC standards:
|
| Case Depth |
168 mm |
| Case Width |
187 mm |
| Case Height |
45 mm |
| Weight | 1.1 kg |
In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
