4x4R

Signal Splitter & Pressbox

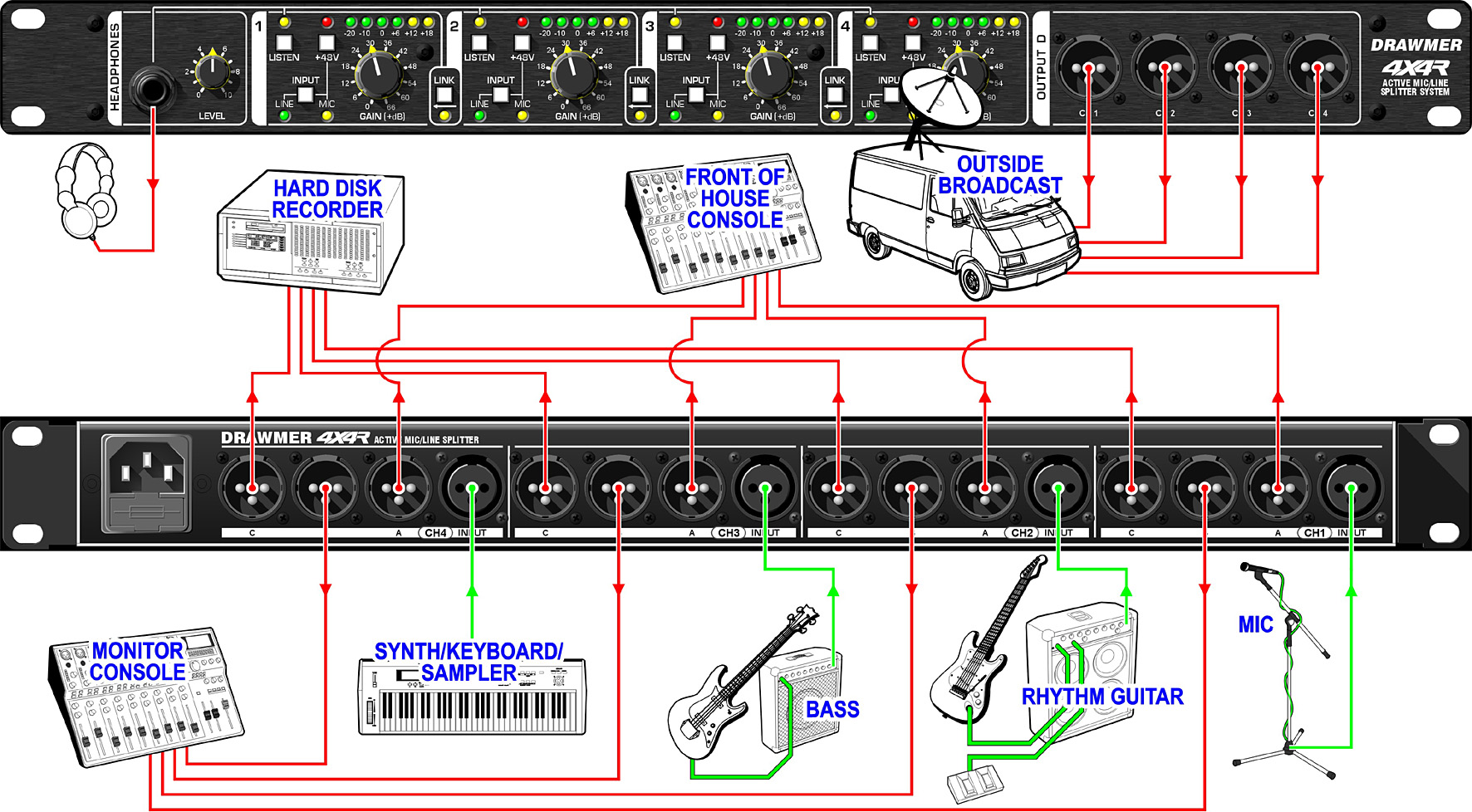

The Drawmer 4X4R is a professional 4-in / 16-out mic and line signal splitter engineered for exceptional audio quality and long-term reliability in demanding environments. Designed for live sound, broadcast, sports coverage, recording, press conferences, and corporate installations, it delivers pristine signal distribution with confidence.

At its core are four studio-grade mic/line preamps offering up to 66dB of gain, paired with sixteen balanced outputs featuring optional transformer isolation. The result is clean, stable audio routing that maintains integrity even in complex, multi-destination setups.

Flexible Configuration

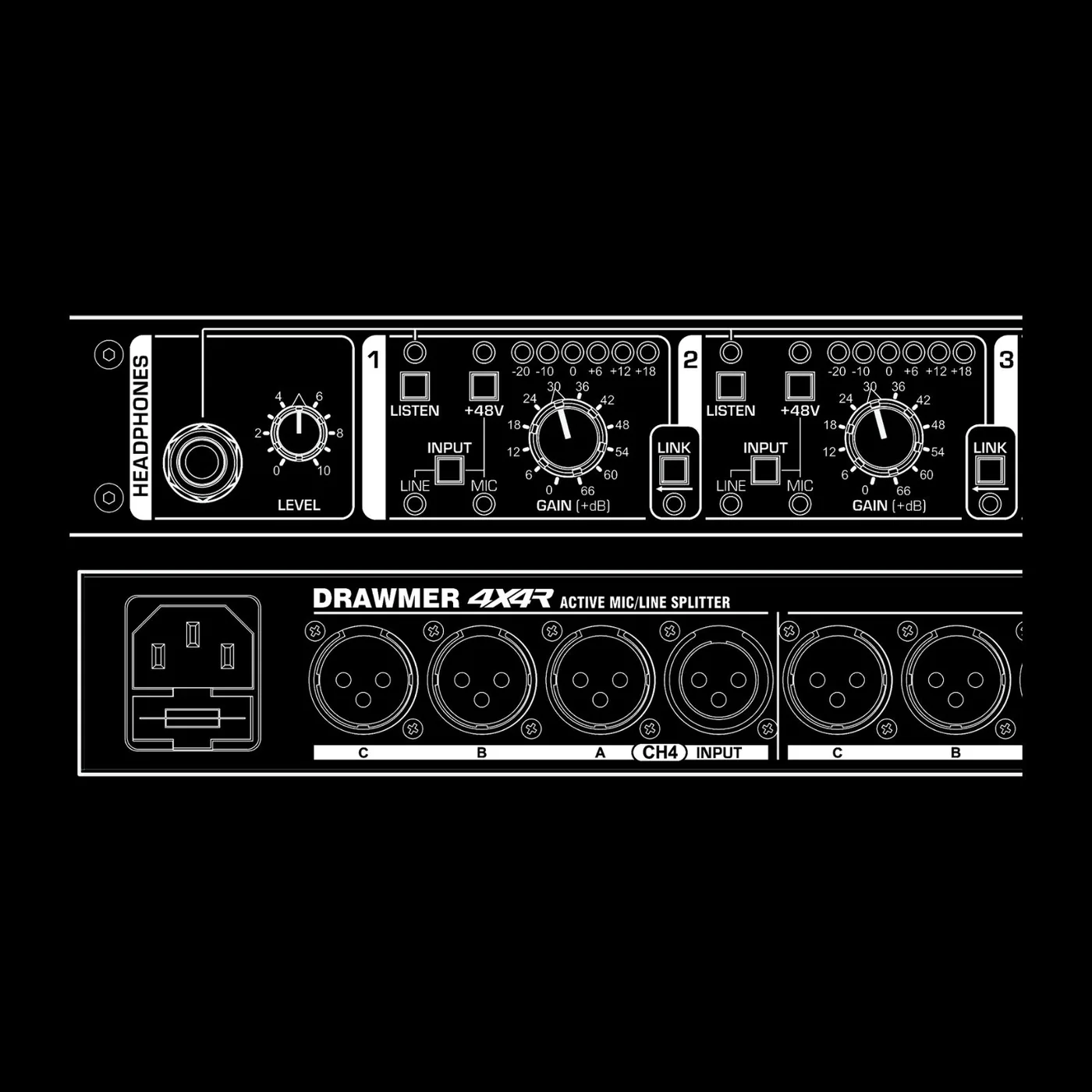

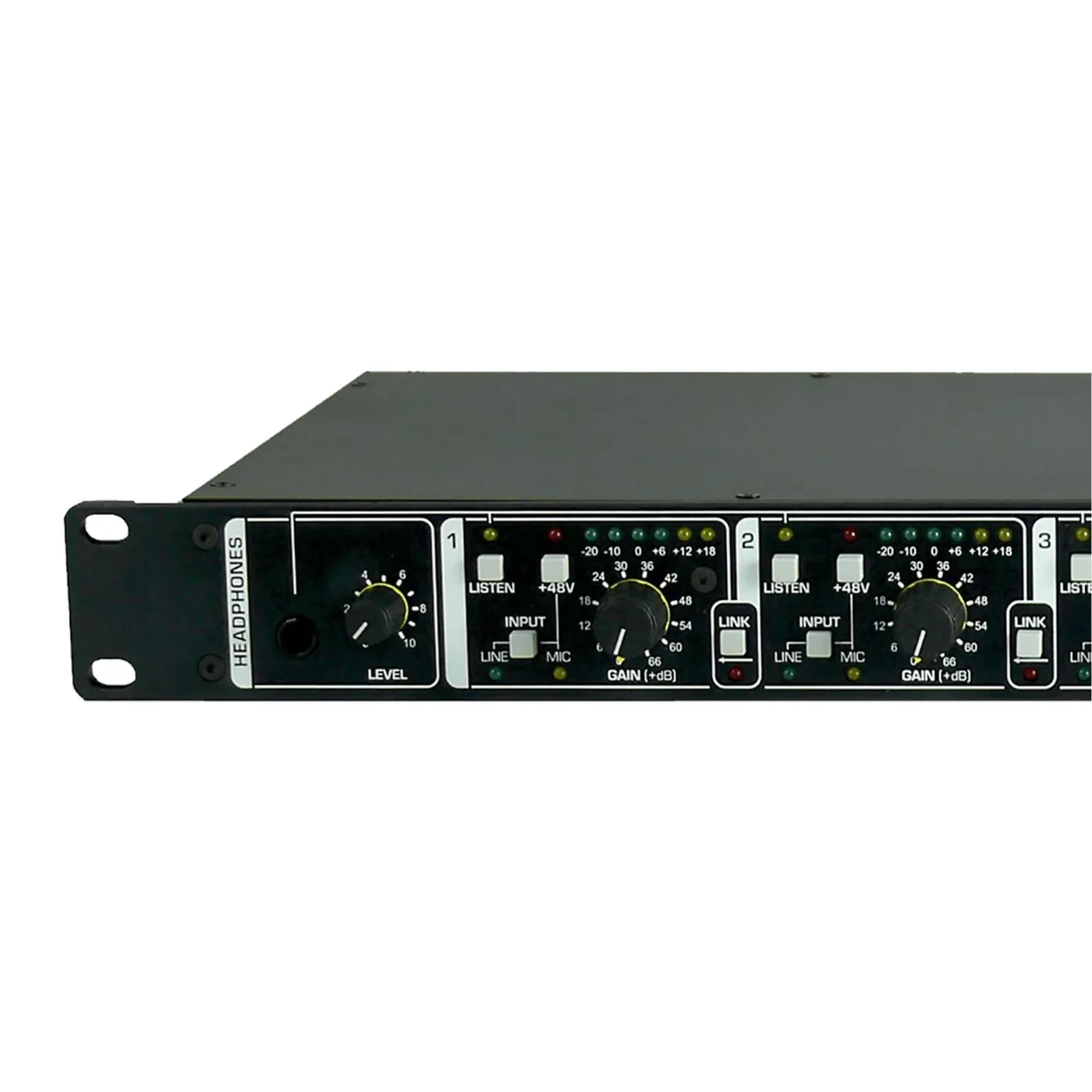

Each of the four channels is equipped with a high-quality mic/line preamp featuring variable gain control, 48V phantom power, mic/line switching, and independent bargraph metering for accurate level monitoring. A dedicated headphone output enables fast and reliable signal checking directly from the front panel.

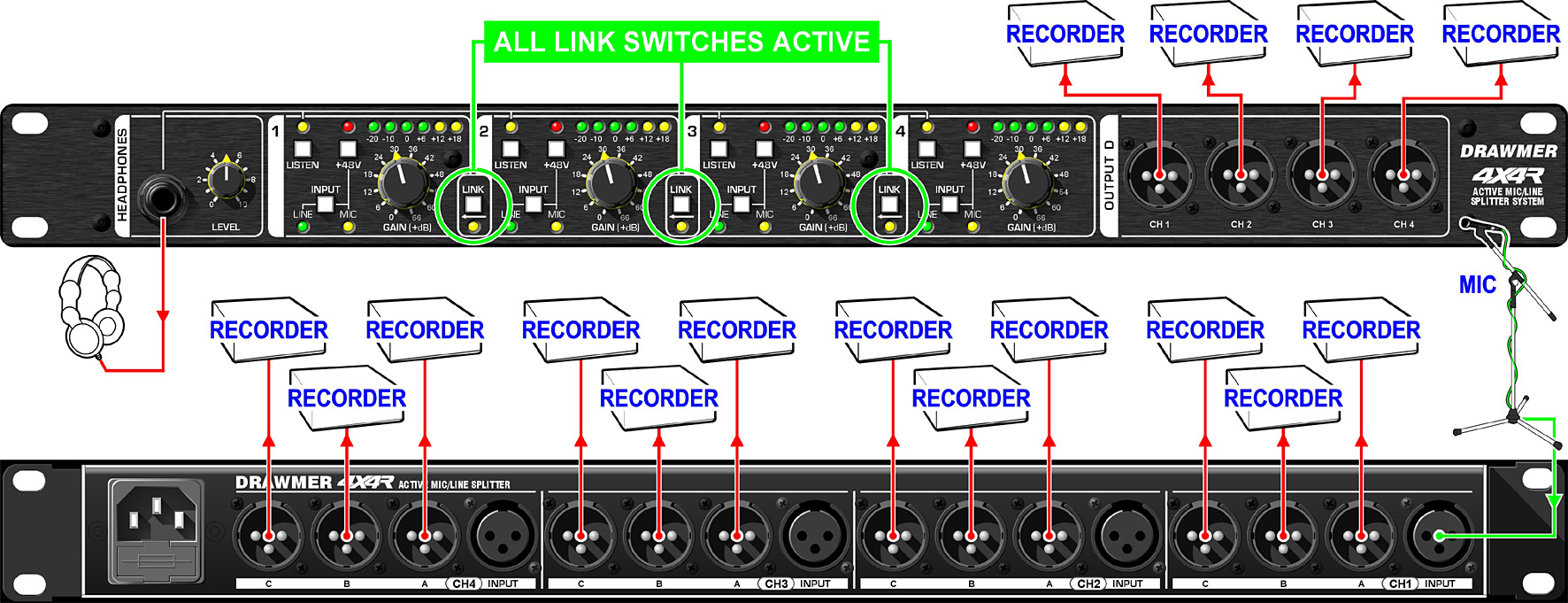

Active signal splitting ensures consistent levels over long cable runs without degradation. The 4X4R can be configured as 1 × 16-out, 2 × 8-out, 1 × 12-out plus 1 × 4-out, or 4 × 4-out, providing maximum flexibility to suit a wide range of audio distribution requirements.

Engineered for Reliability
Housed in a rugged 1U rackmount chassis, the 4X4R is built for fixed installations and touring racks alike. Comprehensive linking options and optional transformer isolation safeguard signal integrity while expanding routing possibilities.

Designed and manufactured in the United Kingdom, the 4X4R delivers the dependable performance professionals expect from Drawmer in mission-critical audio applications.
